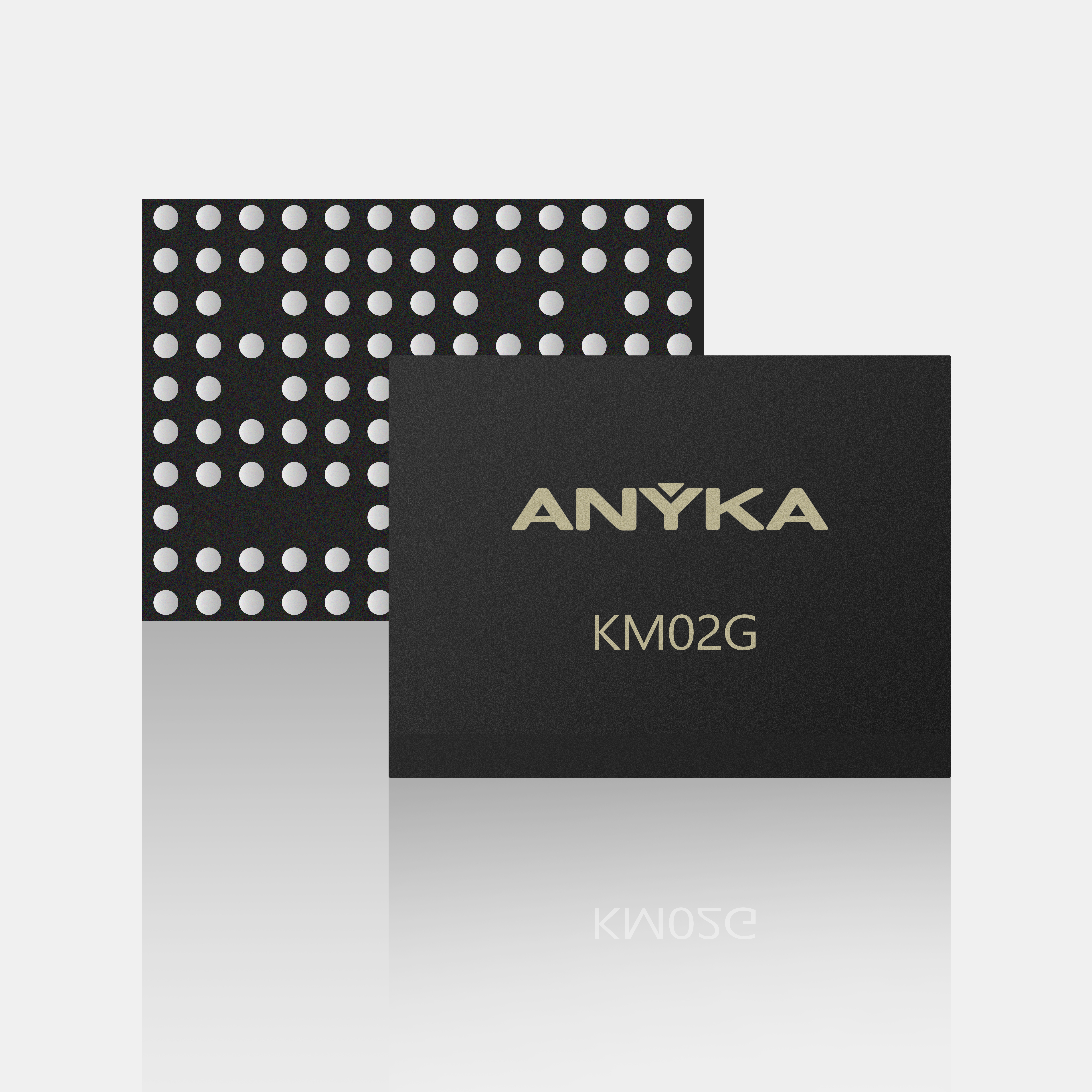

KM02G

Product Description

The KM02G series processors are specially designed for AI glasses. The processors feature an advanced ISP (Image Signal Processor) and IPU (Image Processing Unit), enabling premium photo and video capture directly on the glasses. The key anti-shake technology actively suppresses camera shake and vibrations, delivering stable footage and clearer images even in dynamic scenarios. The KM02G series processors also integrate a NPU (Neural-network Processing Unit), which unlocks a wide spectrum of intelligent on-device AI applications, including gesture recognition for intuitive control and voice recognition for hands-free interactions. Moreover, the KM02G series processors’ compact package size and low power consumption make it ideal for lightweight, battery-efficient AI glasses.

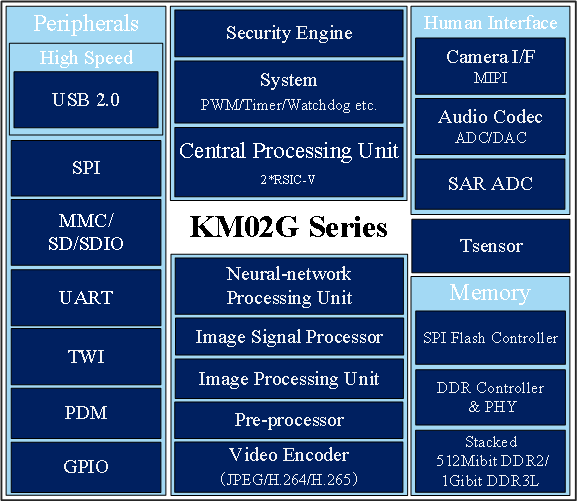

Chip Block Diagram

Chip specifications

CPU

64-bit dual-core RISC-V CPU
Up to 1GHz working frequency

Memory

Stacked 512Mibit DDR2 SDRAM / 1Gibit DDR3L SDRAM

Camera Interface
```
MIPI interfaces
Dual-CIS input
```

Neural-network Processing Unit

Multiple applications such as gesture recognition and speech recognition

Pre-processor

Image scaling
Image flipping and image mirroring
Rectangle/triangle/diamond drawing and filling
Mask
OSD

Image Signal Processor

Supports 2-Frame WDR
Supports 3A (AWB, AE, AF)
Gamma correction
Defect pixel correction
3D/2D noise reduction
Edge enhancement

Image Processing Unit

Image scaling
Distortion correction
Bitmap blending
Rotation at any angle
Mesh transform

Video Processor

H.265/H.264 encoder, resolution up to 3840*2160
JPEG encoder, resolution up to 16384*8192

Audio Codec

One 24-bit Sigma-Delta DAC
Two 16-bit Sigma-Delta ADCs

Peripheral Interface

USB、SPI、MMC/SD/SDIO、UART、TWI、PDM

Security

Secure boot
Hardware RSA, AES, DES and 3DES engine
Hardware HASH engine
True Random Number Generator

Package
```
BGA114
```

KM02G

PDF

Application scenarios

AI Glasses
