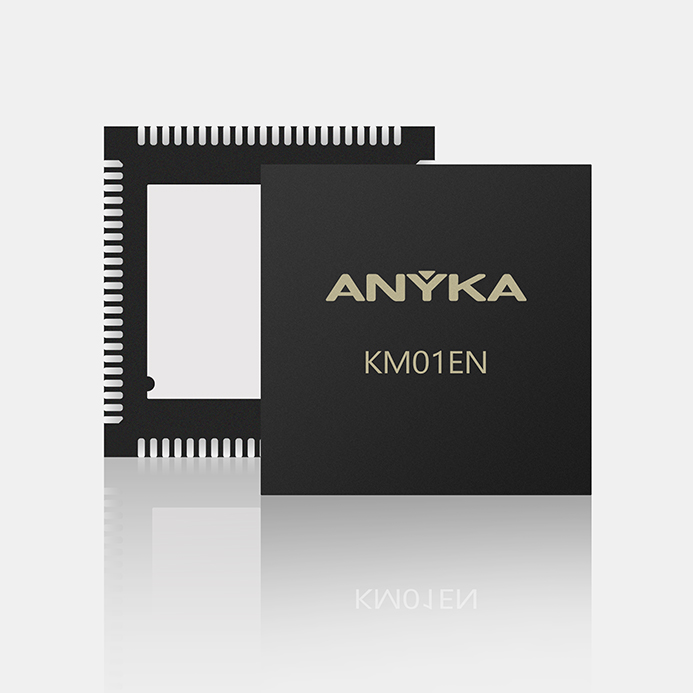

KM01EN

Product Description

The KM01EN processor is specifically designed for Artificial Intelligence & Internet of Things (AIoT) cameras. The optimized image signal processor (ISP) and video processors, along with the Neural-network Processing Unit (NPU), enable powerful image processing capabilities, low-bit-rate video encoding and AI applications such as object detection and tracking, face detection and recognition—all while maintaining minimal power consumption. Besides, the secure boot function safeguards firmware integrity and ensures trusted system startup. Additionally, the processors offer a comprehensive set of peripheral interfaces, such as PDM, I2S, TWI, UART, SPI, MMC/SD/SDIO, Ethernet MAC and USB 2.0, providing high extensibility and flexibility.

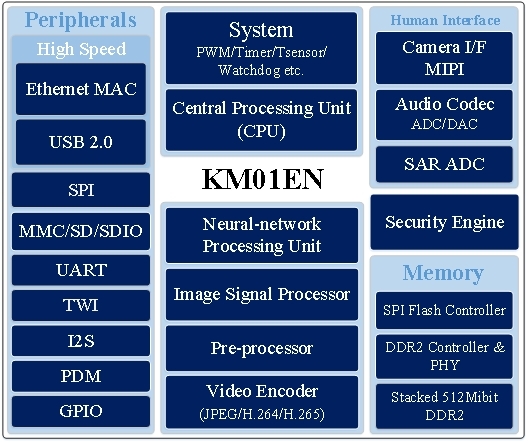

Chip Block Diagram

Chip specifications

CPU

32-bit RISC CPU
Up to 900MHz working frequency

Memory
```
Stacked 512Mibit DDR2 SDRAM
```

Neutral-network Processing Unit

Multiple applications such as object detection/tracking and face detection/recognition

Camera Interface

MIPI interface
Resolution up to 2880*2880

Image Signal Processor

AWB, AE and AF
Gamma correction
Defect pixel correction
3D/2D noise reduction
Edge enhancement

Pre-processor

3 independent channels
Mirroring and flipping of input image
OSD and rectangle drawing

Video Encoder

H.265/H.264 encoding with resolution up to 3072*4096
JPEG encoding with resolution up to 16384*8192

Audio Codec

One 22-bit Sigma-Delta DAC
One 16-bit Sigma-Delta ADC

Peripheral Interfaces

MMC/SD/SDIO, USB2.0, Ethernet MAC, TWI, UART, SPI, I2S, PDM

Security

Secure boot
AES/DES/3DES encryption algorithm
SM2/SM3/RSA/SHA/MD5 algorithm
TRNG

Package
```
QFN88
```

KM01EN

PDF

Application scenarios

Multi-Lens Linkage IoT Camera

Binocular Stitched Panoramic IoT Camera

Binocular Panoramic IoT Camera
