KM02D/KM02X

Product Description

The KM02D and KM02X processors are specifically designed for Artificial Intelligence & Internet of Things (AIoT) cameras, video door entry units and attendance machines, supporting advanced applications such as object detection, object tracking, facial recognition and intelligent video surveillance. With dual RISC-V cores, integrated Neural Network Processing Unit (NPU), Image Signal Processor (ISP), and hardware H.265/H.264 video encoder, the KM02D and KM02X processors offer efficient image processing and high-efficiency, high-fidelity video encoding at ultra-low power consumption. Besides, the secure boot function safeguards firmware integrity and ensures trusted system startup. Additionally, the processors feature a rich set of peripheral interfaces, including MMC/SD/SDIO, Ethernet MAC, USB 2.0, UART, SPI, PDM, TWI and I2S, ensuring high extensibility and flexibility for diverse system designs.

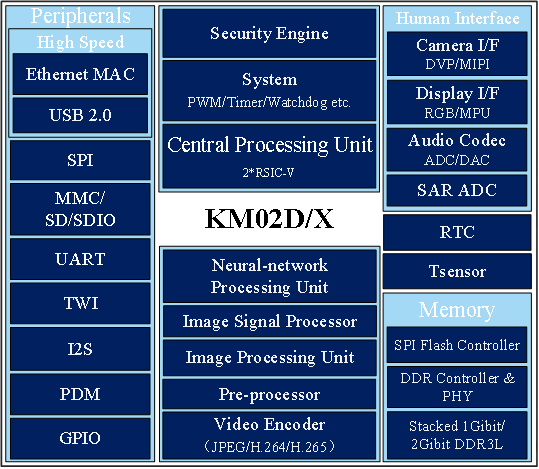

Chip Block Diagram

Chip specifications

CPU

64-bit dual-core RISC-V CPU
Up to 1GHz working frequency

Storage
```
Stacked 1Gibit/2Gibit DDR3L SDRAM
```

Camera Interface

Supports MIPI and DVP interface
Supports dual-CIS with MIPI interfaces

Neural-network Processing Unit

Multiple applications such as object detection/tracking and face detection/recognition

Pre-processor

Image scaling
Image flipping and image mirroring
Rectangle/triangle/diamond drawing and filling
Mask
OSD

Image Signal Processor

Supports 2-Frame WDR
Supports 3A (AWB, AE, AF)
Gamma correction
Defect pixel correction
3D/2D noise reduction
Edge enhancement

Image Processing Unit

Image scaling
Distortion correction
Bitmap blending
Rotation at any angle
Mesh transform

Video Processor

H.265/H.264 encoder, resolution up to 3840*2160
JPEG encoder, resolution up to 16384*8192

Display Controller

MPU/RGB interface
Resolution up to 1920*1920

Audio Codec

One 24-bit Sigma-Delta DAC
Two 16-bit Sigma-Delta ADCs

Peripheral Interface

Ethernet MAC, USB, SPI, MMC/SD/SDIO, UART, TWI, I2S, PDM

Security

Secure boot
Hardware RSA, AES, DES and 3DES engine
Hardware HASH engine
True Random Number Generator

Package
```
QFN128
```

KM02D/KM02X

PDF

Application scenarios

Multi-Lens Linkage IoT Camera

Binocular Stitched Panoramic IoT Camera

Binocular Panoramic IoT Camera

4K IoT Camera

AI Camera

Smart Turnstile

Access Control and Time Attendance Integrated Machine

Development Platform
