AK3918E Series

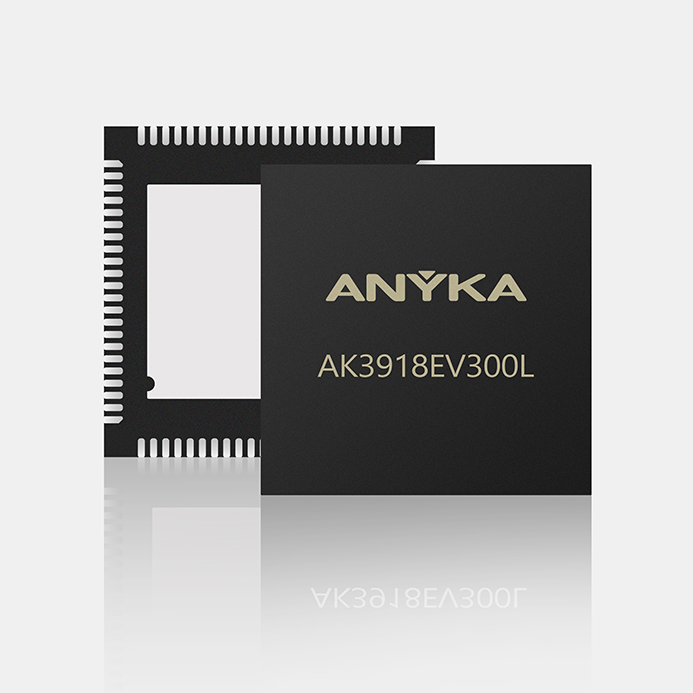

AK3918EV300L

Product Description

The AK3918EV300L series processors are designed for Internet of Things (IoT) cameras, a key component in cost-sensitive electronic surveillance systems. Equipped with an image signal processor (ISP), an H.265 encoder, and a hardware-accelerated AES/DES/3DES encryption engine, the AK3918EV300L series processors deliver efficient image processing and high-efficiency, high-fidelity video encoding at ultra-low power consumption, all while ensuring data security. The AK3918EV300L series processors integrate a 512Mibit DDR2 SDRAM, Wi-Fi, and BLE, thus reducing the bill-of-materials (BOM) cost of end products. Additionally, the AK3918EV300L series processors provide a wide range of peripheral interfaces, including MMC/SD/SDIO, Ethernet MAC, USB2.0, UART, SPI, TWI and I2S, ensuring high extensibility and flexibility for diverse product designs.

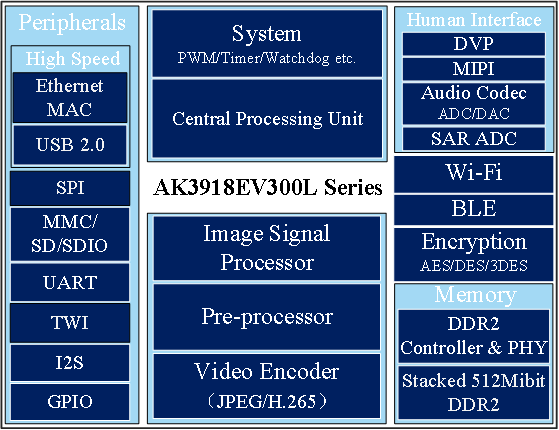

Chip Block Diagram

Chip specifications

CPU

32-bit RISC CPU
Up to 900MHz working frequency

Storage
```
Stacked 512Mibit DDR2 SDRAM
```
Camera Interface
```
Supports MIPI and DVP interface
```

Pre-processor

Image scaling
Image flipping and image mirroring
Rectangle drawing
OSD

Image Signal Processor

Supports 3A (AWB, AE, AF)
Gamma correction
Defect pixel correction
3D/2D noise reduction
Edge enhancement

Video Processor

H.265 encoder, resolution up to 2304*1296
JPEG encoder, resolution up to 13680*7695

Wi-Fi

Compatible with 2.4GHz IEEE 802.11 b/g/n
Supports AP, STA, AP+STA mode and P2P
Supports HT20 and HT40 bandwidth transmission
Supports WEP, WPA, WPA2, WPA3 personal security protocol

BLE

Compatible with BT specification v5.0
Supports Coded PHY (long range)
Supports BT 1Mbps and 2Mbps
Supports network configuration

Security
```
Hardware AES, DES and 3DES engine
```

Audio Codec

One 22-bit Sigma-Delta DAC
One 16-bit Sigma-Delta ADC

Peripheral Interface

Ethernet MAC, USB, SPI, MMC/SD/SDIO, UART, TWI, I2S, GPIO

Package
```
QFN88
```

AK3918EV300L

PDF
