AK3918E Series

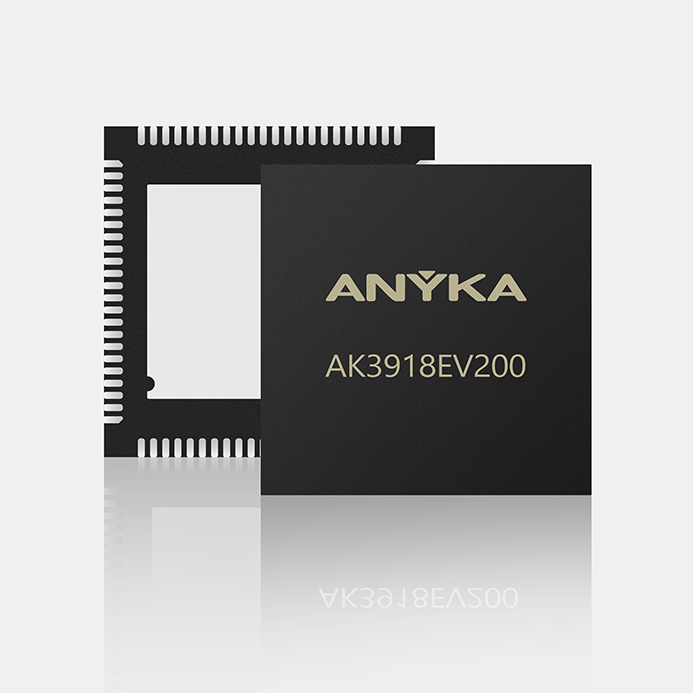

AK3918EV200

Product Description

The AK3918EV200 series processors are specifically designed for Internet of Things (IoT) cameras, a key component in cost-sensitive electronic surveillance systems. Equipped with an image signal processor (ISP), an H.264 encoder, and a hardware-accelerated AES/DES/3DES encryption engine, the AK3918Ev200 series processors deliver efficient image processing and high-efficiency, high-fidelity video encoding at ultra-low power consumption, all while ensuring data security. The AK3918EV200 series processors integrate a 512Mibit DDR2 SDRAM, Wi-Fi, and BLE, thus reducing the bill-of-materials (BOM) cost of end products. Additionally, the AK3918EV200 series processors provide a wide range of peripheral interfaces, including MMC/SD/SDIO, Ethernet MAC, USB2.0, UART, SPI, TWI and I2S, ensuring high extensibility and flexibility for diverse product designs.

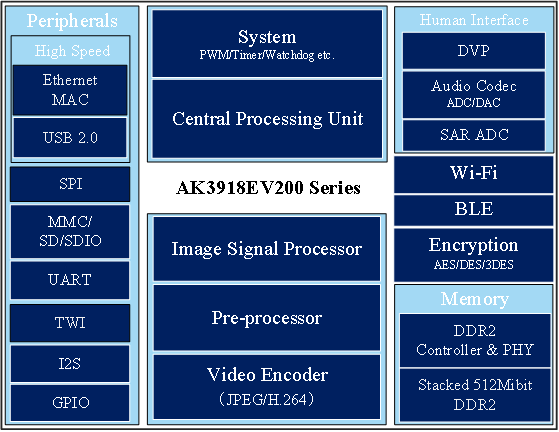

Chip Block Diagram

Chip specifications

CPU

32-bit RISC CPU
Up to 400MHz working frequency

Storage
```
Stacked 512Mibit DDR2 SDRAM
```
Camera Interface
```
Supports one DVP interface
```

Image Signal Processor

3A (AWB, AE, AF)
Gamma correction
Defect pixel correction
White balance correction
3D/2D noise reduction
Edge enhancement
Image flipping and image mirroring

Pre-Processor

Down/up scaler
On-Screen Display (OSD)
Privacy Mask

Video Processor
```
Supports H.264/JPEG encoding
```

Audio Codec

One Sigma-Delta DAC
One Sigma-Delta ADC

Wi-Fi

Compatible with 2.4GHz IEEE 802.11 b/g/n
Supports AP, STA, AP+STA mode and P2P
Supports WEP, WPA, WPA2, WPA3 personal security protocol

BLE

Compatible with BT specification v5.0
Supports Coded PHY (long range)
Supports BT 1Mbps and 2Mbps
Supports network configuration

Peripherals

Ethernet MAC, USB, SPI, MMC/SD/SDIO, UART, TWI, I2S, PWM, GPIO

Security
```
Hardware AES, DES and 3DES engine
```
Package
```
QFN88
```

AK3918EV200

PDF

Application scenarios

Card IoT Camera

Battery-Powered IoT Camera

Video Doorbell
