AK1080

Product Description

The AK1080 series processors are designed for applications such as TWS/OWS Bluetooth earbuds and Bluetooth speakers. Equipped with a Bluetooth module, an audio processor, and a power management unit, the AK1080 series processors deliver low-power consumption with consistent audio performance. Featuring two touch-sensitive keys, the processors support flexible and intuitive user interaction. Additionally, the AK1080 series processors provide a comprehensive set of peripheral interfaces, including I2S, PDM, UART, TWI, and SPI, enabling flexible system integration and supporting diverse audio and data communication needs.

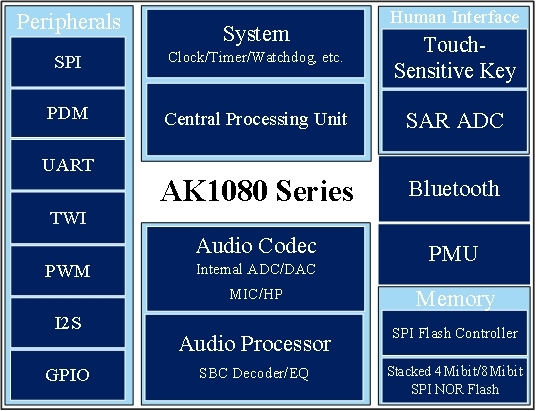

Chip Block Diagram

Chip specifications

CPU

32-bit RISC core
Up to 300MHz working frequency

Storage
```
Stacked 4Mibit/8Mibit SPI NOR Flash
```

Bluetooth

Compatible with Bluetooth specification v6.1
Supports dual mode: BR/EDR and BLE

Working Mode

Active mode
Standby mode
Sleep mode
Deep sleep mode
Power off mode

Audio

Two Sigma-Delta ADCs
One Built-in Sigma-Delta DAC
SBC decoding and EQ

Peripheral Interface

SPI、PWM、UART、TWI、I2S、PDM、Touch-sensitive keys

Package
```
QFN24
QFN32
```

AK1080

PDF

Application scenarios

TWS

OWS

Bluetooth Speaker

Development Platform

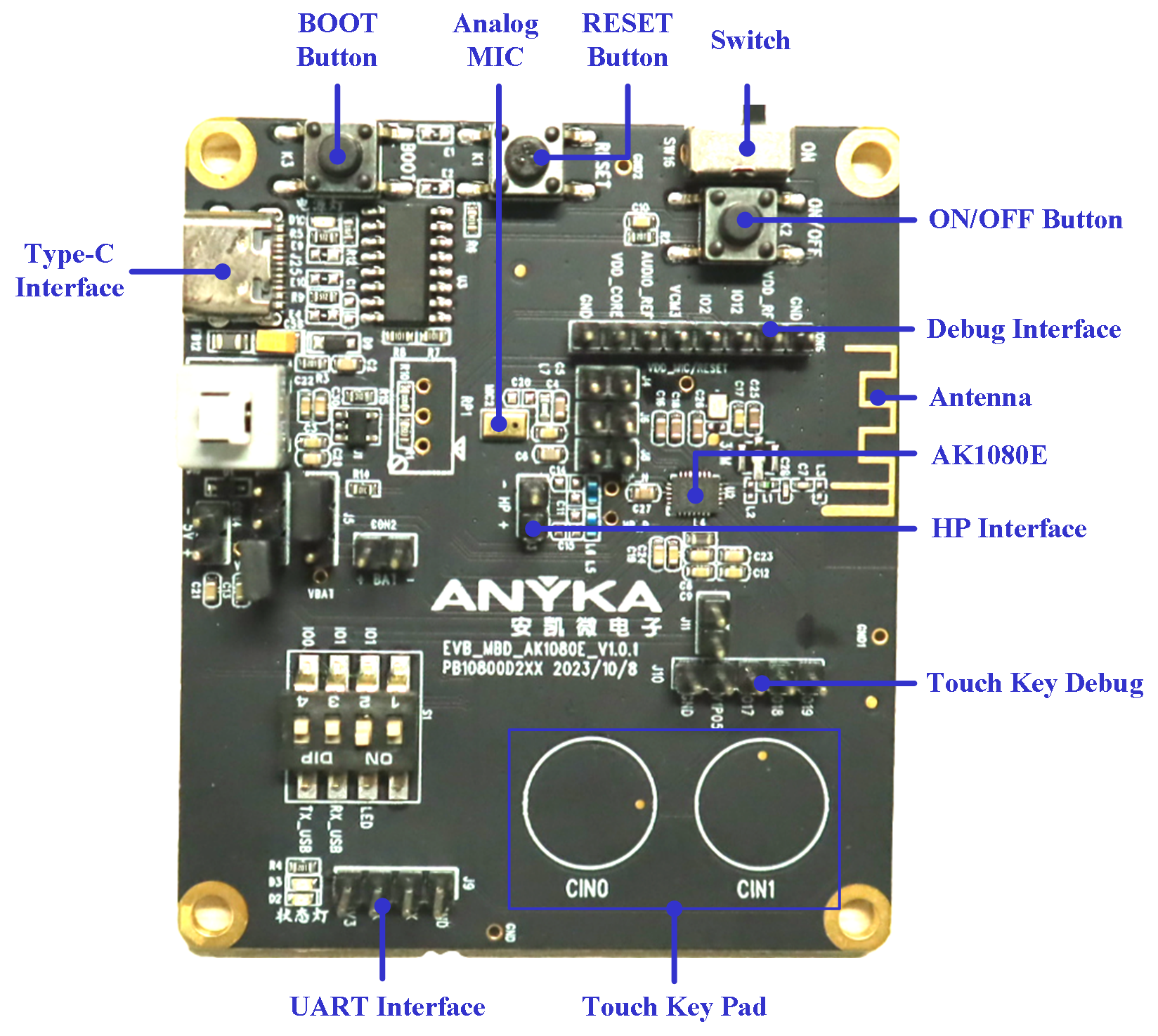

1080 Development Board Set A (TWS Earphone Application)
