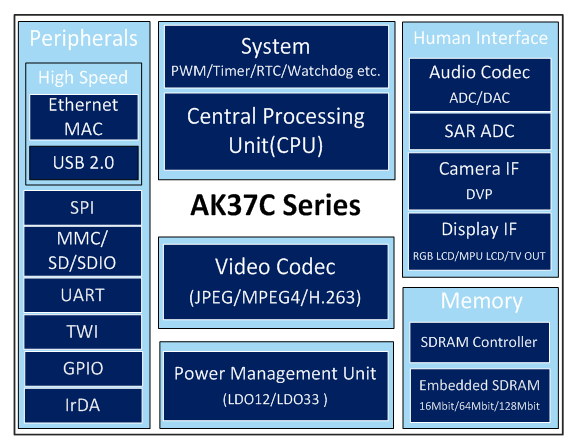

Specifications

CPU

ARM926EJ-S

Up to 280MHz

Power

Management Unit

（PMU）

LDO12 and LDO33

Video Codec

Encoder

?       JPEG/MPEG4/H.263 encoder,up to 640*480

?       Supports dual-stream

Decoder

?       JPEG/MPEG4/H.263 decoder

Audio Codec

single DAC and single ADC

Supports 8KHz/9.6KHz/11.025KHz/12KHz/16KHz/22.05KHz/24KHz/32KHz/44.1KHz/48KHz Sampling Rate

Supports multiple audio coding/decoding formats

Audio 3A function (AEC, AGC and ANR)

Camera

Supports DVP interface

Compatible with BT.601/BT.656 standard

Supports YUV422 data

Display

LCD interface

?       Supports 16-bit/9-bit/8-bit MPU LCD interface

?       Supports 16-bit/8-bit RGB LCD interface

?       Resolution up to 1024*768

TV OUT interface

?       Compatible with NTSC/PAL standard

Peripherals

USB2.0

Ethernet MAC

MMC/SD/SDIO

SPI

TWI

UART

GPIO

PWM

Memory

Embedded 16Mbit/64Mbit/128Mbit SDRAM

Package

QFN64,8mm x 8mm x 0.85mm

LFBGA121,9mm x 9mm x 0.8mm

ELQFP128,14mm x 14mm x 1.4mm
