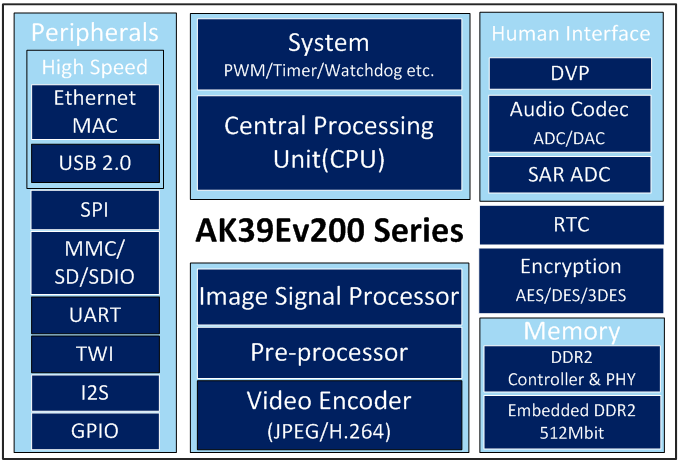

Specifications

CPU

ARM926EJ-S

Up to 400MHz

ISP

3A (AWB, AE, AF)

Gamma Correction

Defect Pixel Correction

Lens Shading Correction

Green Balance

3DNR,2DNR

Sharp

Pre-processor

Down/up scaler

On-Screen Display (OSD)

Privacy Mask

Video Encoder

H.264 encoder, up to 1.3MP

JPEG encoder, up to 2048*2048

Supports multi-stream, Video*3 + JPEG*1

Audio Codec

single DAC and single ADC

Supports 8KHz/9.6KHz/11.025KHz/12KHz/16KHz/22.05KHz/24KHz/32KHz/44.1KHz/48KHz Sampling Rate

Supports multiple audio coding/decoding formats

Audio 3A function (AEC, AGC and ANR)

Encryption

Supports AES/DES/3DES encryption algorithms

Human Interface

Supports DVP interface

Compatible with BT.601 standard

Supports Bayer RAW data and YUV422 data

SAR ADC with three channels

Peripherals

USB2.0

Ethernet MAC

MMC/SD/SDIO

SPI

TWI

I2S

UART

GPIO

PWM

Memory

Embedded 512Mbit DDR2

Package

QFN80, 9mm x 9mm x 0.85mm

eLQFP128, 14mm x 14mm x 1.4mm
